Ridgid Pipe Wrench Part Heel Jaws & Pins

Ridgid Pipe Wrench Part Heel Jaws & Pins

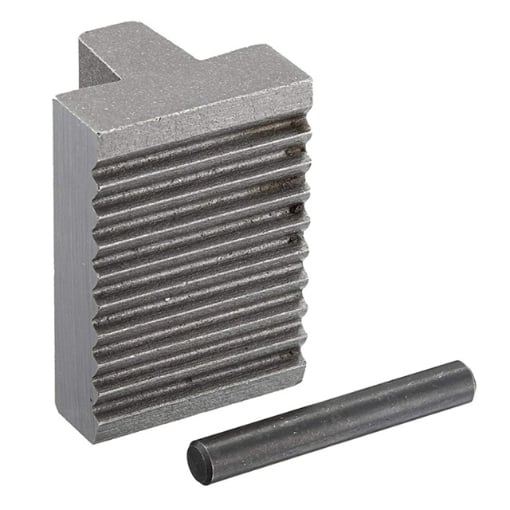

Replacement heel jaws and pin assemblies for RIDGID pipe wrenches are available as genuine OEM parts, designed to fit both heavy-duty and aluminum models. These parts are typically sold as a single unit (heel jaw with its corresponding pin) and are categorized by the overall length of the wrench they support.

RIDGID uses specific catalog numbers for each wrench size to ensure compatibility. Below are the common catalog numbers for the

RIDGID Replacement Heel Jaw and Pin Assembly

based on wrench size:

6-inch Wrench
: Catalog No. 31560.
8-inch Wrench

: Catalog No. 31585.
10-inch Wrench

: Catalog No. 31610.
12-inch & 14-inch Wrenches
: Catalog No. 31635.
18-inch Wrench

: Catalog No. 31675.
24-inch Wrench

: Catalog No. 31700.
36-inch Wrench

: Catalog No. 31725.
48-inch Wrench

: Catalog No. 31750.
60-inch Wrench

: Catalog No. 31775.
