MEIHO HYDRAULIC MANUAL STACKER FIXED FORK SDJ1016 1TON 1.6METERS

MEIHO HYDRAULIC MANUAL STACKER FIXED FORK SDJ1016 1TON

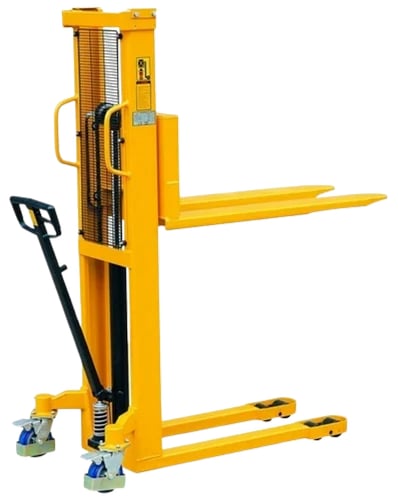

The MEIHO Hydraulic Manual Stacker (Model: SDJ1016) is a heavy-duty material handling lifter featuring a 1-ton (1,000 kg) load capacity and a 1.6-meter (1,600 mm) maximum lift height. This manual unit utilizes a robust steel profile construction and a dual-control manual hydraulic pump system operated by either a hand lever or a foot pedal

• Load Capacity: 1,000 kg (1 Ton)
• Maximum Lift Height: 1,600 mm (1.6 meters)
• Fork Style: Fixed Fork design (standard width overall forks: 550 mm)
• Lowered Fork Height: 90 mm
• Fork Dimensions: 61 mm (thickness) / 170 mm (width) / 1,100 mm (length)
• Load Center Distance: 600 mm
• Mast Lowered Height: 2,080 mm
• Turning Radius: 1,380 mm
• Service Weight: 204 kg
